MACH LED PLUS.forty has long been recognized as a global benchmark in high-performance machine lighting. Through ongoing innovation and development, it continues to set new standards and open up fresh possibilities in industrial illumination. Its enduring reputation is built on delivering consistent, high-quality lighting in demanding environments, while also adapting to the evolving needs of modern machine tools.
The latest CORE variants of MACH LED PLUS.forty offer significantly increased light output, delivering illuminance levels up to 20% higher than comparable luminaires. This enhanced brightness allows users to achieve optimal lighting conditions with fewer or smaller fixtures, effectively reducing overall system costs without compromising performance.
Reliability is a key focus of the MACH LED PLUS.forty. Each luminaire undergoes rigorous testing in in-house laboratories to ensure compliance with all relevant international standards and the demanding requirements of machine tool applications. Supported by a generous global warranty and service offering, this ensures users benefit from both peace of mind and long-term operational efficiency.
Engineered for exceptional durability, MACH LED PLUS.forty features a shock- and vibration-resistant design that withstands harsh industrial conditions. Its advanced sealing technology eliminates crossover points and the associated risk of leakage. A sophisticated, automated bonding process—featuring plasma cleaning, climate-controlled adhesive curing, and 100% vacuum leak testing—guarantees the structural integrity and reliability of each unit. These robust design measures significantly reduce the risk of downtime, contributing to continuous, interruption-free machine operation.
Sustainability is built into the design of the MACH LED PLUS.forty. The luminaire is constructed with reparability in mind, helping to conserve resources and extend product life. Combined with highly efficient LED technology, it supports eco-conscious operations and helps companies achieve their environmental goals.

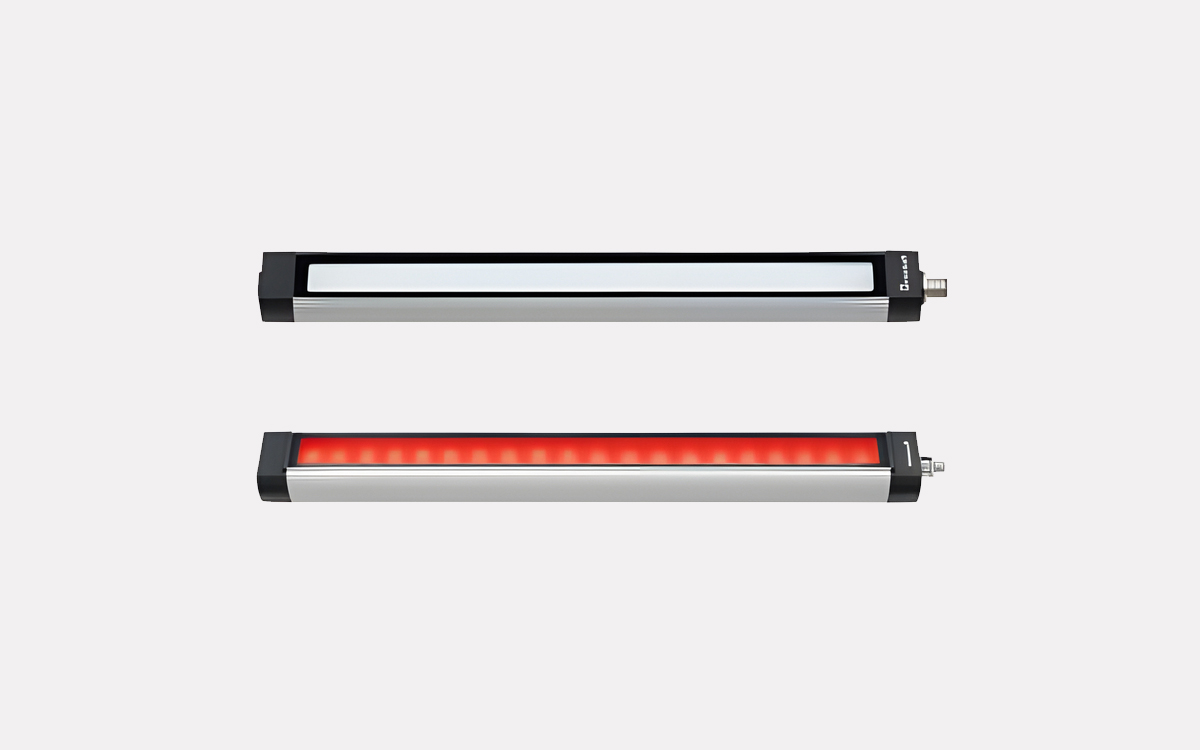

The luminaire delivers white light as standard and is also available in a version with RGB+W LEDs for multi-color signaling or decorative effects. The neutral white 5000 K color temperature ensures accurate visibility, with a color rendering index (CRI) of over 80. Users can choose between a 40° beam angle with optics for focused lighting or a 90° beam via reflector for broader illumination.
MACH LED PLUS.forty is housed in colorless anodized aluminum with black high-performance plastic side parts and Viton® seals. A 4 mm thick safety glass cover protects the light engine. Mounting is flexible, using a variety of brackets available in the accessories range.
It supports a maximum ambient temperature of 50°C in the standard version, or 60°C in the high-temperature variant. Designed for longevity, the luminaire features an LED service life exceeding 60,000 hours (L70), and resists vibrations from 10 to 55 Hz (0.35 mm amplitude) and shocks up to 50 g.
With IP67 protection and protection class III, the MACH LED PLUS.forty connects via a 24 VDC M12 A-coded plug. A range of accessories—including brackets, M12 connection technology, and power devices for mains voltage integration—enhances its adaptability across diverse machine lighting applications.
