Hello,
If this is in the wrong place please just move it.
I need help locating a datasheet from 2 different kinds of SMD LEDs I purchased. I've searched thoroughly without result. I asked the seller months ago without getting a response. I have tested them and they do work. Here is where I got them from:
www.aliexpress.com
www.aliexpress.com
One is a white SMD LED. The other is an RGB LED.
The white one is called, SX-3528-WW. In the description the seller doesn't include a voltage or amperage value. In the RGB SMD LEDs description the seller includes both, but not the name. Nor does the seller specify if the current value of 20ma is for all the LEDs at the same time or if that's just for one of the LEDs inside the SMD 3528 package.
I'm also very interested in the datasheet so I can see a graph where I can get the current vs. luminosity values.
Thanks!
If this is in the wrong place please just move it.
I need help locating a datasheet from 2 different kinds of SMD LEDs I purchased. I've searched thoroughly without result. I asked the seller months ago without getting a response. I have tested them and they do work. Here is where I got them from:

7.76US $ 20% OFF|1000pcs Rgb Power Top 1210 3528 Smd Smt Plcc-2 Led Red Green Blue New Full Color Common Anode 3-chip - Diodes - AliExpress
Smarter Shopping, Better Living! Aliexpress.com

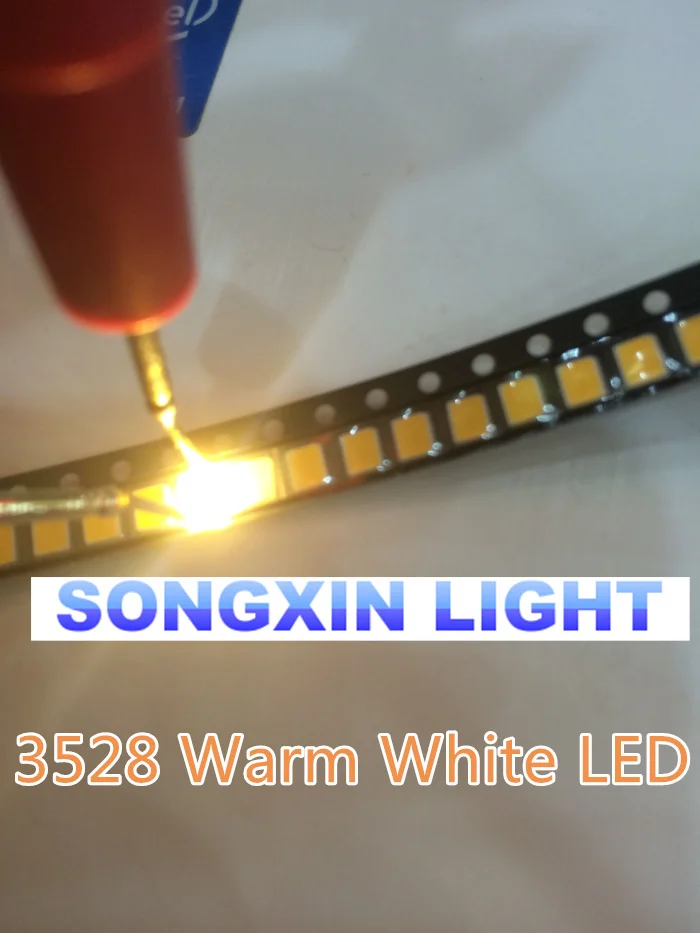

2.19US $ 24% OFF|1000 pcs 1210 SMD SMT 3528 LED Warm white POWER TOP PLCC 2 Lamp Bead SMD Chip for All Kinds of LED Light|Diodes| - AliExpress
Smarter Shopping, Better Living! Aliexpress.com
The white one is called, SX-3528-WW. In the description the seller doesn't include a voltage or amperage value. In the RGB SMD LEDs description the seller includes both, but not the name. Nor does the seller specify if the current value of 20ma is for all the LEDs at the same time or if that's just for one of the LEDs inside the SMD 3528 package.
I'm also very interested in the datasheet so I can see a graph where I can get the current vs. luminosity values.
Thanks!
