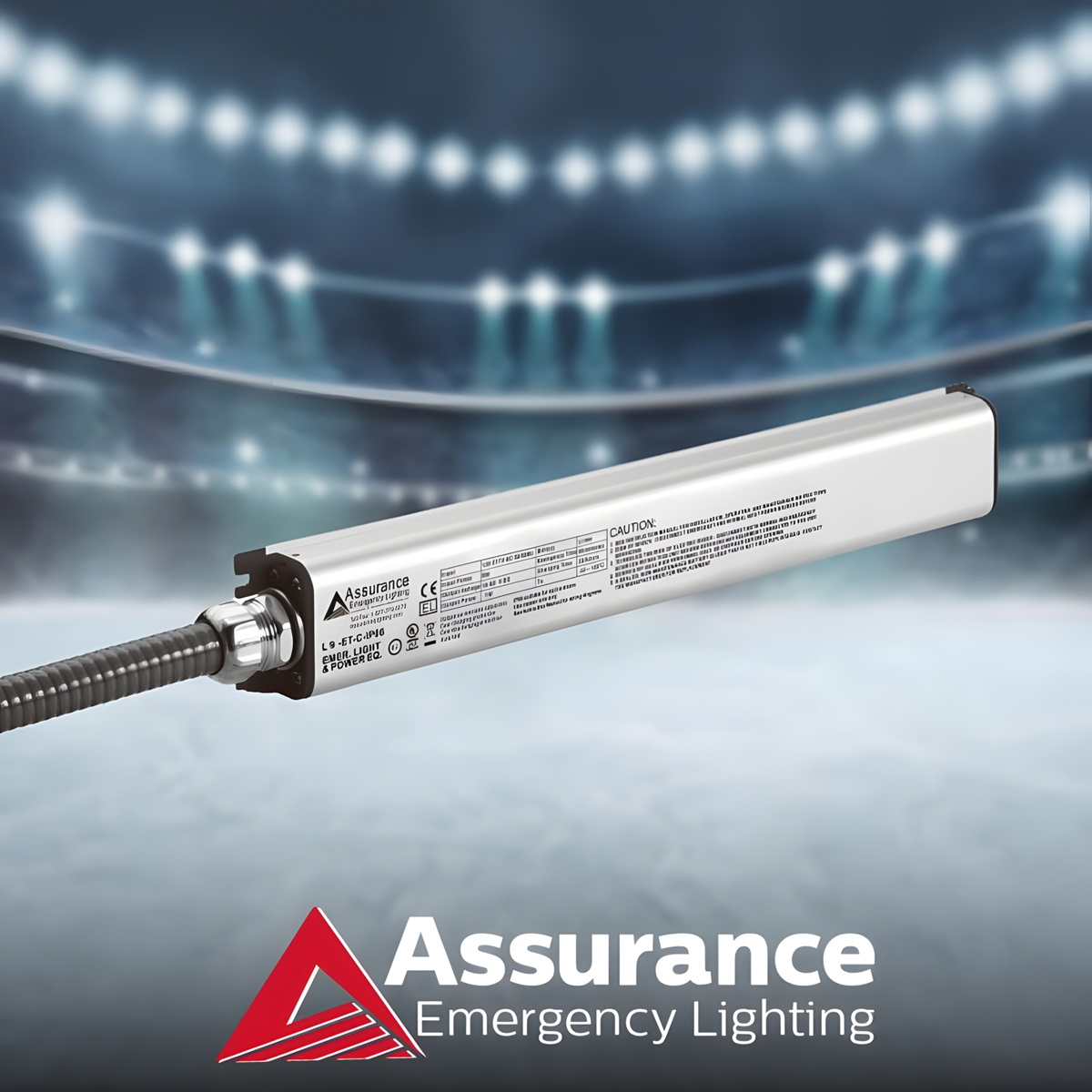

Introducing the Class 2 Extreme Extended Temperature L9-ET-C-IP66 from Assurance Emergency Lighting. Designed to perform in the harshest conditions with a low-temperature rating of -40°C, this rugged LED emergency driver delivers 9 watts of constant power. With self-diagnostics and IP66-rated housing, it's UL Listed for factory and field installation.
The Assurance Emergency Lighting L9-ET-C-IP66 LED emergency drivers are used with LED luminaires and Class 2 LED drivers to convert lighting fixtures for emergency lighting applications. The L9-ET-C-IP66 provides extended temperature operation from -40°C to +50°C and has a IP66 Rated enclosure for damp, wet or outdoor locations.
Emergency lighting shall be provided by using a standard LED fixture, separate LED Class 2 driver and a constant power L9-ET-C-IP66 9W, cold temperature, IP66 rated emergency LED driver. The emergency driver shall be UL Listed for field or factory installations. This product allows the LED luminaire to be used for both normal and emergency operations. The luminaire can be used for switched, unswitched or dimmed applications. The L9-ET-C-IP66 emergency driver shall provide 9W of constant power to the LED load for a minimum of 90 minutes, and will operate over a temperature range of -40°C to +50°C. An illuminated test switch shall be provided.
The self testing feature automatically performs the 60-second test once every month and the required 90-minute, full discharge, once per year. L9-ET-C-IP66 meets or exceeds all National Electrical Code and Life Safety Code Emergency Lighting requirements and is rated for IP66 Wet and Damp locations. It is warranted for a full 5 years from date of purchase. The L9-ET-C-IP66 meets Title 20 CEC requirements.
