The LED lighting is a mature industry, with advancements in lumens per watt and integration of intelligent dimming applications. Various countries have also established detailed safety regulations and energy saving efficiency regulations to ensure user safety and energy saving. MEAN WELL's latest LED power supply, XLN/XLC series, provides the most complete safety certification and dimming functionalities. By combining with luminaire designs that meet high luminous efficiency and safety requirements, it supports the global initiative to achieve the 2050 net-zero carbon emission target through energy conservation.

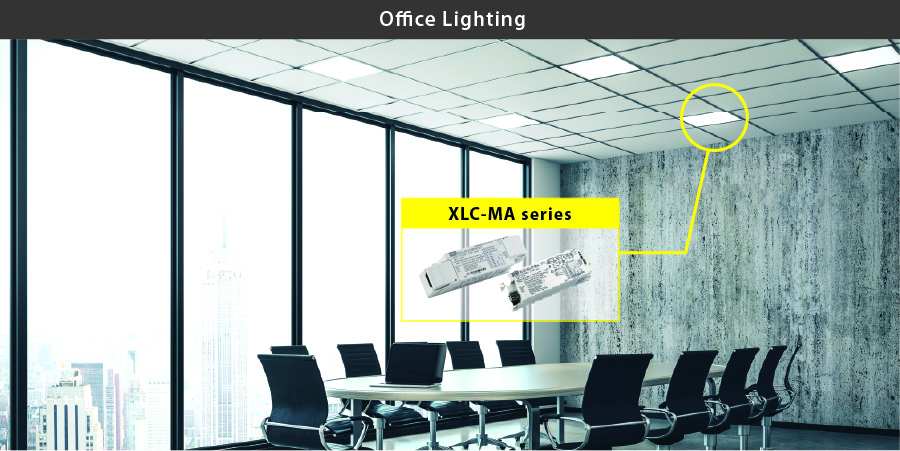

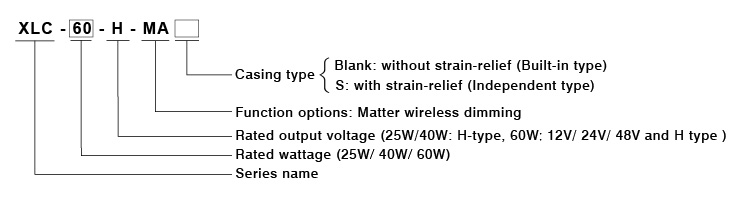

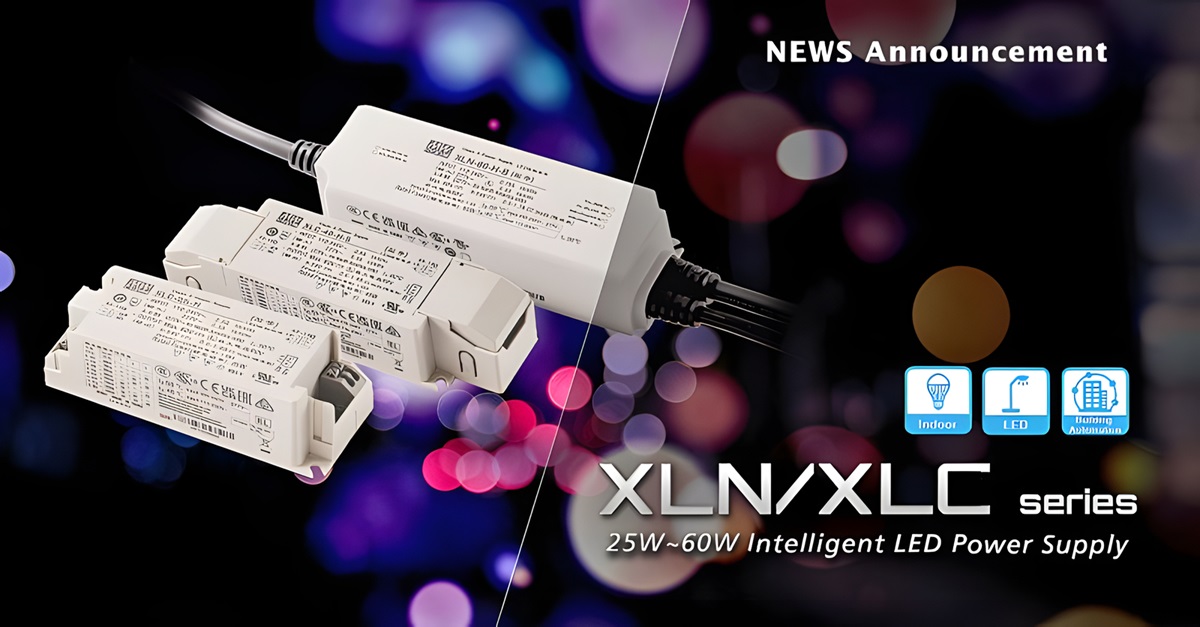

MEAN WELL continues to offer a range of standard LED power supplies, incorporating the latest regulations and output dimming isolation designs. The new compact XLN-25/40/60W series adopts an independent wiring output design, fully encapsulated to meet IP67 waterproof function. The XLC-25/40/60 series features a terminal-block output design, with options for independent or built-in mechanisms. Additionally, multiple current options are available, and the output current can be conveniently adjusted through DIP-Switch or NFC sensing methods. In terms of dimming functionality, various wired or wireless dimming interfaces are also provided, such as 3 in 1 / DALI-2 / KNX / Casambi / Matter (IoT), etc. The minimum brightness can be adjusted to 0.1%, making it convenient for customers to integrate with different smart control solutions. Various dimming products will also be launched successively in the future.

Having cultivated expertise in the LED lighting field for many years, MEAN WELL has recently transitioned to providing lighting system. This includes wired control KNX or DALI-2 lighting systems, allowing system integrators or users to easily integrate products certified with KNX or DALI standards, reducing compatibility issues. Furthermore, MEAN WELL offers wireless control for smart home lighting solutions, including the latest Matter (IoT) wireless solution. This can be integrated and configured through Apple HomePod speakers and the HomeKit App. If you have smart home solution requirements, please contact MEAN WELL's sales team for assistance.

Features

• Constant power design with wide range adjustable current (H type)
• Constant voltage output models available (12V/24V/48V)
• Output current adjusted by NFC sensing
• Full range input 110~305VAC (with PFC function)
• Plastic case with double insulation and Class II design
• Meet UL8750 class 2 / class P power unit
• Compliant with IEEE 1789 and ErP flicker-free standards
• Standby power consumption <0.5W
• Minimum dimming brightness 0.1% (DALI-2 DT6)
• Fully potted design complies with IP67 waterproof and dustproof (XLN series)
• Compliant with emergency lighting (EL) functions
• Dimming function: 3 in 1, DALI-2, KNX, Casambi, Matter
• Output and dimming circuit comply with isolation design
• Optional independent or built-in LED power supply (XLC series)
• 5 years warranty and >50,000 hrs lifetime

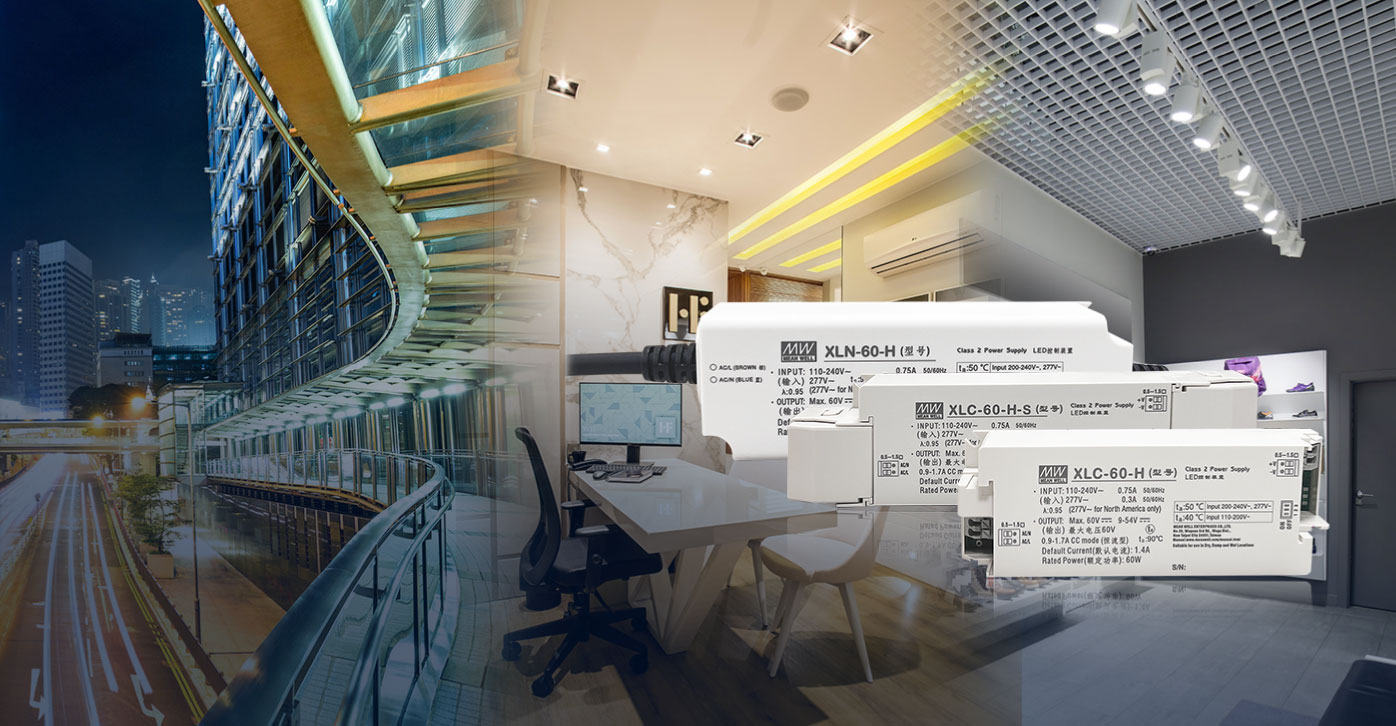

The new generation XLN and XLC series are plastic housing LED drivers of MEAN WELL, they are designed with double insulation and class II/2 for general indoor lighting or commercial luminaires. Some key features include compact size, constant voltage and constant current output, multiple dimming functions, outlet with wiring type or terminal type...etc. The series are designed with the concept of standard LED power supply and multi-purpose for customer selection, satisfying general needs of matching various lighting fixtures or LED strip applications.

The constant current output adopts a constant power mode and provides a wide range of current adjustment functions, the output current can be adjusted through the MEAN WELL APP while combing with NFC, and has 3-in-1 DALI-2 digital dimming or other wire/wireless dimming methods (KNX/ Bluetooth/ Matter); the minimum dimming level can reach <0.1%.

Complying with the latest safety regulations, the output and dimming circuits are isolated and comply with double insulation and safety voltage (SELV) designs to ensure user safety and reduce the risk of electric shock. The entire series has complete international certification and full range voltage input (Class II/2), making it convenient for customers to match all sorts of lighting in the worldwide market.

As the efficiency of LED luminous continues to improve, the lighting requires less LED power and heat sinks. Therefore, the miniaturized power supply facilitates customers to match various lighting mechanism designs while providing better product functionality and reliability.

In addition to the traditional 3 in 1 dimming (0-10V, PWM signal, resistance), the dimming method also provides the latest DALI-2 digital dimming function with the lowest brightness can reach <0.1%. Also, it can be combined with the DLC-02 DALI digital lighting control system, used in various lighting projects or commercial lighting scenes.

The full series provides a variety of output applications, including constant voltage output (12/24/48V) that can be used with LED lighting strip applications, and constant current (H type) that can be used with general lighting designs. Both constant voltage and constant current output modes provide dimming functions to facilitate customers in various lighting scenario applications.

Features

• Constant power design with wide range current adjustable (H type)
• Constant voltage output models available (12V/24V/48V)
• Output current adjusted by NFC sensing (XLN series)
• Full voltage input 110~305VAC (with PFC function)
• Plastic case with double insulation and Class II/2 design
• Compliant with IEEE 1789 and ErP flicker-free standards
• Standby power consumption <0.5W
• Minimum dimming brightness <0.1% (DALI-2 DT6)
• Fully potted design complies with IP67 waterproof and dustproof (XLN series)
• Compliant with emergency lighting (EL) functions
• Dimming function: 3 in 1, DALI-2; KNX, IoT (Optional)
• Output and dimming circuit comply with isolation design
• Optional independent or built-in LED power supply
• 5 years warranty and >50,000 hrs lifetime

MEAN WELL also continues to develop new products to provide more standardized power supplies to serve global customers and various industrial applications. The biggest difference between the newly-launched LRS-100/200/350/600 N2 series and the previous LRS is providing instant 200% hashtag#peakpower for up to 5 seconds, which reduces the issues when matching with various instantaneous high currents during startup applications.

Customers don't need to buy higher wattage, simply use it with a normal wattage that is combined with instantaneous peak power. By doing so, this can not only reduce the purchasing cost of power supply but also help customers to improve application problems. The output voltage provided this time is 12V/24V/36V/48V models, which are commonly used in industrial equipment. The other mechanical dimensions are the same as the previous LRS series, making it convenient for customers to replace them.

The enclosed-type power supplies are used in a wide range of industrial fields, including for various electrical equipment or electronic controls. Normally, the power supply would need to provide higher startup peak power for inductive loads such as motor products or electronic controls, it would usually startup with a large current capacitive load application due to the energy storage capacitors on circuit. Therefore, MEAN WELL has developed the new LRS-100/200/350/600 N2 series, to provide customers with a power supply that has instantaneous 200% peak power consumption (duty≦35%) without increasing the wattage, also to help customers improve application problems and reduce total costs.

The enclosed-type is one of the major product lines, MEAN WELL also continues to develop new products to provide more standardized power supplies to serve global customers and various industrial applications. The biggest difference between the newly-launched LRS-100/200/350/600 N2 series and the previous LRS is providing instant 200% peak power for up to 5 seconds, which reduces the issues when matching with various instantaneous high current during startup applications. Customers don't need to buy higher wattage, simply use it with a normal wattage that combined with instantaneous peak power. By doing so, this can not only reduce the purchasing cost of power supply but also help customers to improve application problems. The output voltage provided this time are 12V/24V/36V/48V models, which are commonly used in industrial equipment. The other mechanical dimensions are the same as the previous LRS series, making it convenient for customers to replace them.

In addition to the UL/EN 62386-1 certification, The LRS-N2 series is also compliant with EN standards. 61558-1 OVC III design for industrial power supply. Generally, products with OVC III design are more suitable for industrial equipment because they can be connected directly from the distribution box and save the cost of using an additional isolation transformer. At the same time, the series is also dual-certified to help customers shorten the certification process, and can be used with various electronic equipment or mechanical equipment, such as robotic arms, motor control, coffee machines, emergency lighting systems, etc. If you have equipment that requires instantaneous 200% peak power consumption, simply choose LRS-N2 series or please contact the MEAN WELL sales team.

MEAN WELL's XLG series complied with the latest safety standards and isolated dimming design, covered both constant current and constant voltage applications. The series can be used with general constant current luminaires such as street light, floodlight, bay light or general 12V/24V/48V constant voltage LED strips for lighting applications. It not only conforms to the independent control gear design, provides IP67 waterproof and 3-in-1 dimming functions; it has also been added the DALI-2 digital dimming function to provide a more completed solution for intelligent system integration.

DALI (Digital Addressable Lighting Interface) is a protocol described in the technical standard IEC 62386 for digital control of building lighting systems. As the digital lighting evolves, the DALI Alliance (DiiA) developed the DALI-2 certification program; All of the certified DALI-2 products would be more compatible and interoperable to avoid pairing issues between various manufacturers. The newly added products that meet the DALI-2 dimming standard have included a full series of XLG-50/75/100/150/200/240/320W; provide a variety of indoor and outdoor LED lighting for DALI system integration. Also, an additional set of 12V/250mA auxiliary source output can be selected for products above 150W, which would lower the risk of being damaged by surge conduction.

The XLG series adopted constant power design that is convenient for customers to use in different output currents. In order to prevent the defective issues caused by the abnormal temperatures, MEAN WELL redefined the over-temperature protection so that the LED driver would derated to 75~50% when the temperature increased. In addition, the XLG series also provide IOVP (Input Over Voltage Protection), which would automatically shutting off the LED driver when the input voltage is higher than 320 VAC, to avoid power failure damaged by excessive AC input voltage.

Features

• Full power output at 70~100% operation. (Constant Power mode)
• Wide input range 100-305 VAC (Class I)
• Protections: Short Circuit Protection (SCP) / Over Temperature Protection (OTP)
• DALI-2 dimming function with isolated design
• Surge protection: 6KV/4KV
• Lifetime >50,000 hrs and 5 years warranty
